Manufacturer of mechanical, regulated and frequency-controlled valve blocks
Drive regulated including ELCON control card
- High driving quality thanks to minimal creeping distances
- Stopping accuracy of +/- 3 mm
- Robust and durable components
- Shortest installation time thanks to Plug & Play
- CAN OPEN control with the optional board in combination with the proven ELCON control card
- Cost-effective and uncomplicated connectivity
- Easy access to control card and analysis data via control system

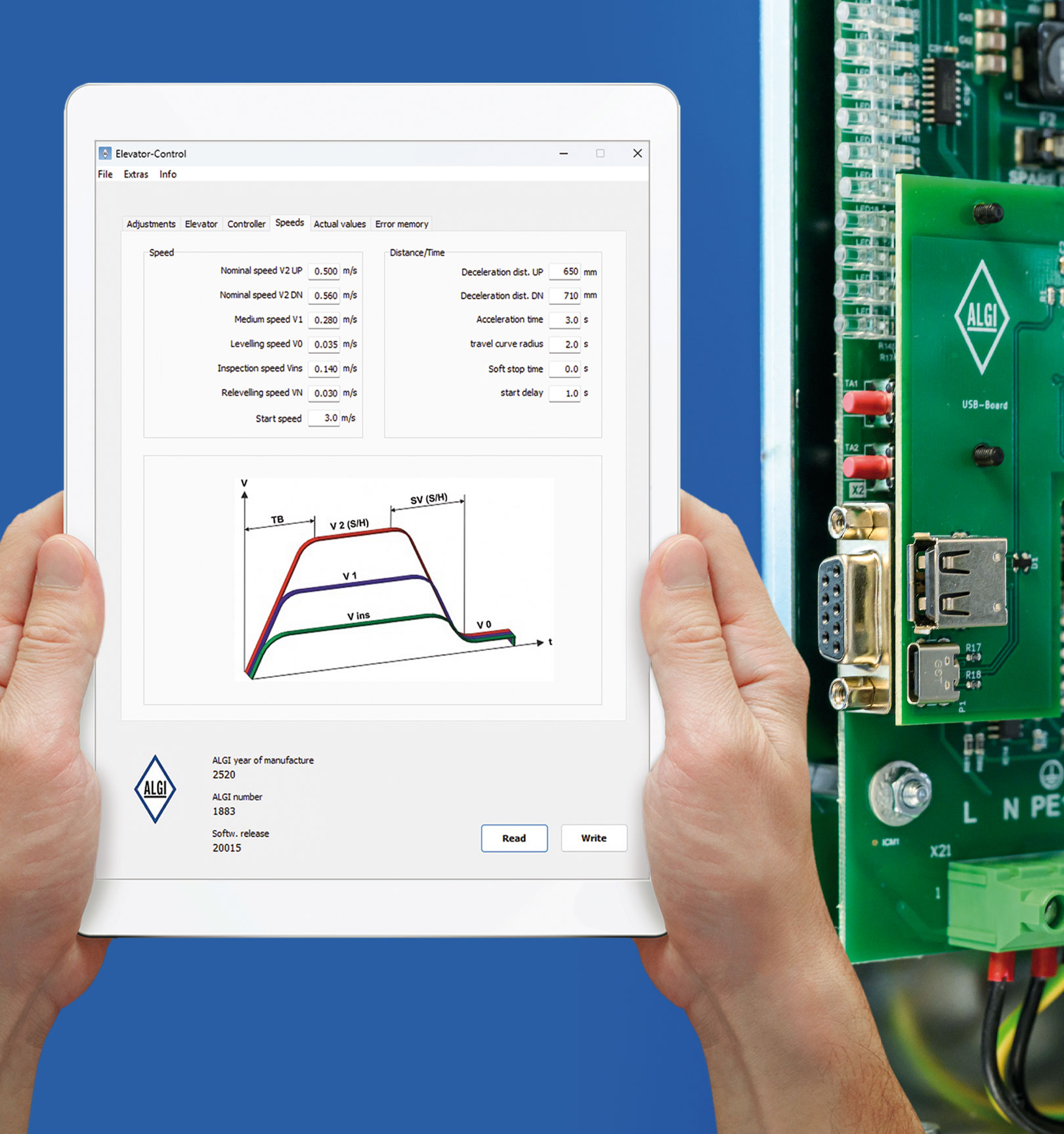

- Recording and adjusting the driving profile via tablet
- Remote access possible
- USB port for communication via the Android app for smartphones or tablets

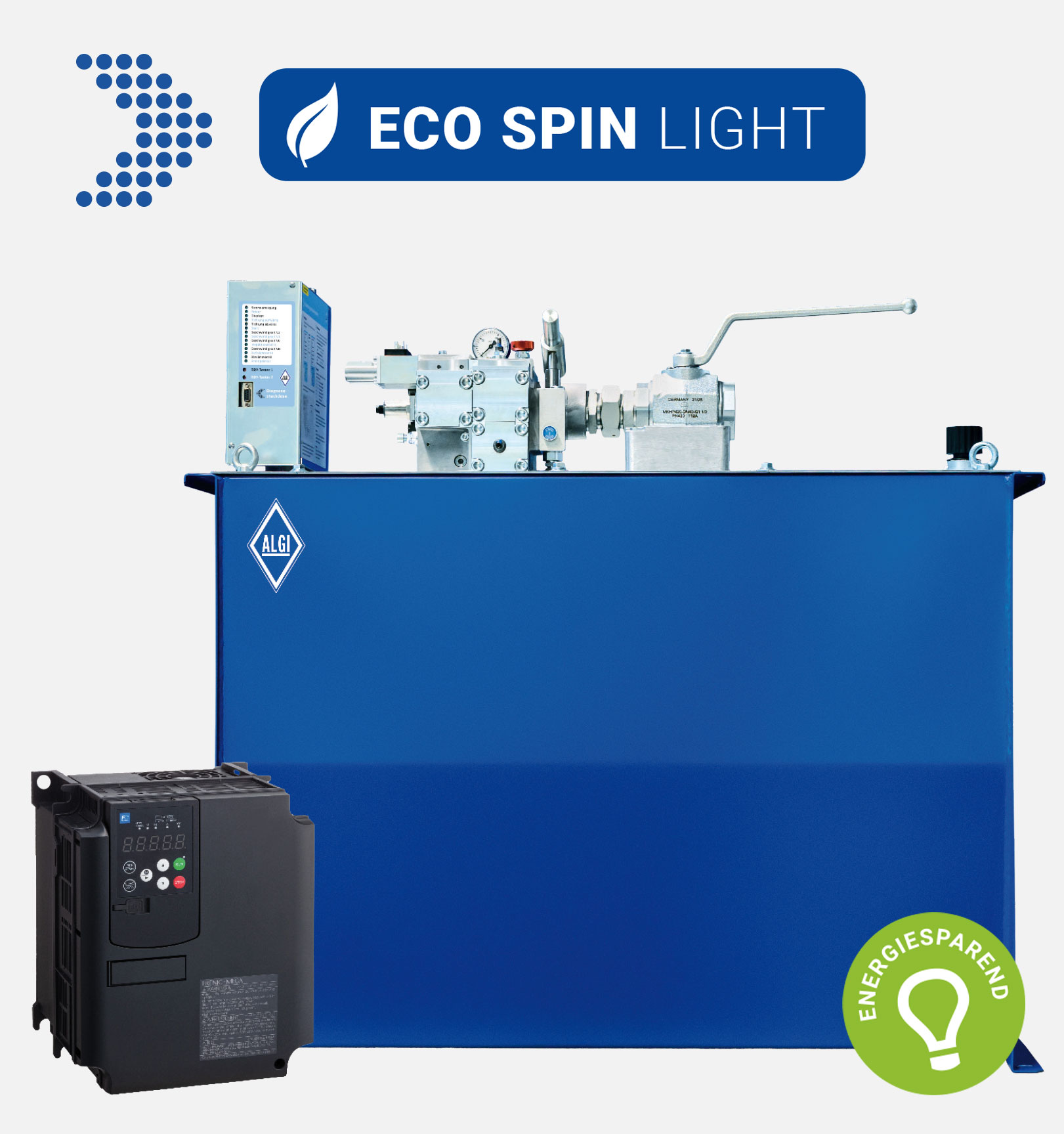

Energy-saving drive, frequency-controlled drive upwards with the ELCON control card
- Option board for CAN OPEN and USB-C control can be used
- Optimised and simple adjustment of the travel curve in both travel directions via the ELCON control card
- No mechanical adjustments to the control block necessary
- No braking resistor required
- Without motor encoder
- Simple and quick commissioning
- Plug & Play

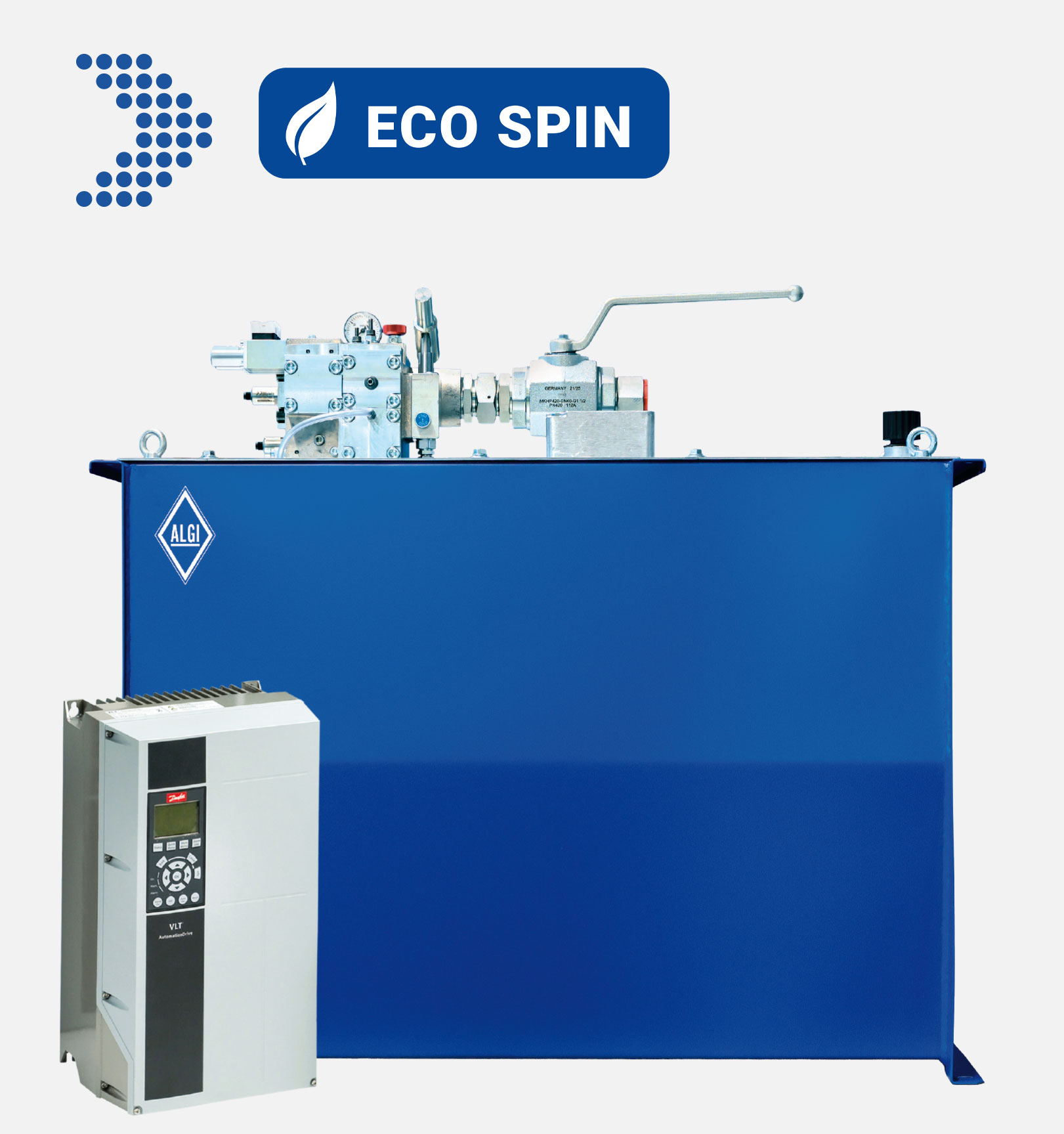

Energy-saving Drive frequency-controlled drive in both directions with direct stop
- Travel curve controlled via frequency inverter
- No control card or motor encoder required
- Direct stop and no analogue measuring system
- Optionally available with regen unit
Savings of frequency-controlled drives compared to conventional hydraulic drives:
Accessories for the hydraulic drive
- Suspension device for motor and pump unit
- Float switch
- Analogue level indicator
- Cooling kit
- Releveling unit
- Filter unit
- Oil pan with bracket for frequency inverter and distributor
